173853-1
Manufacturer:
TE Connectivity
Mfr.Part #:
173853-1
Datasheet:
Description:

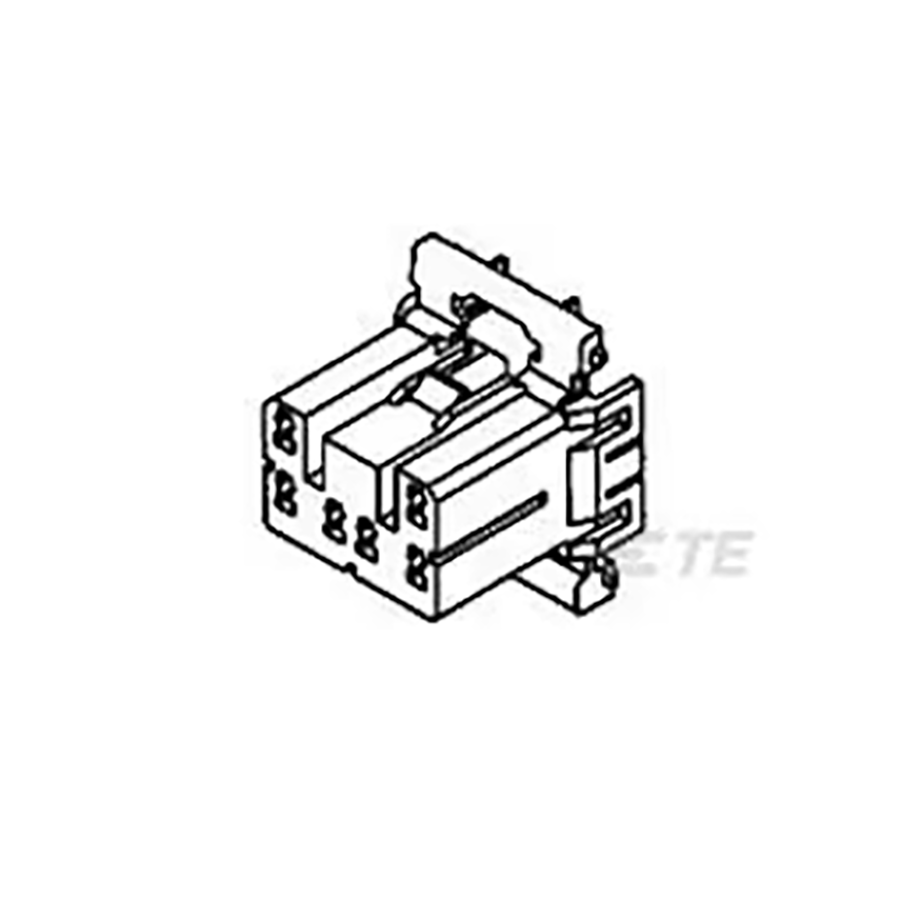

Headers and Wire Housings Cable, Free Hanging Plug, Socket Number of Positions:18 Pitch:5.8928 mm
| Parameter | Value |
|---|---|
| Length | 21.6 mm |
| Width | 42.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 26.0604 mm |
| Packaging | Bulk |
| Depth | 21.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 5.8928 mm |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 18 |
| ELV | Compliant |
| Body Material | PBT |
| Connector Type | Plug, Socket |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Row Spacing | 8.001 mm |
| Housing Material | Polybutylene |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Housing Color | White |
| Mating Tab Width | 1.8 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
